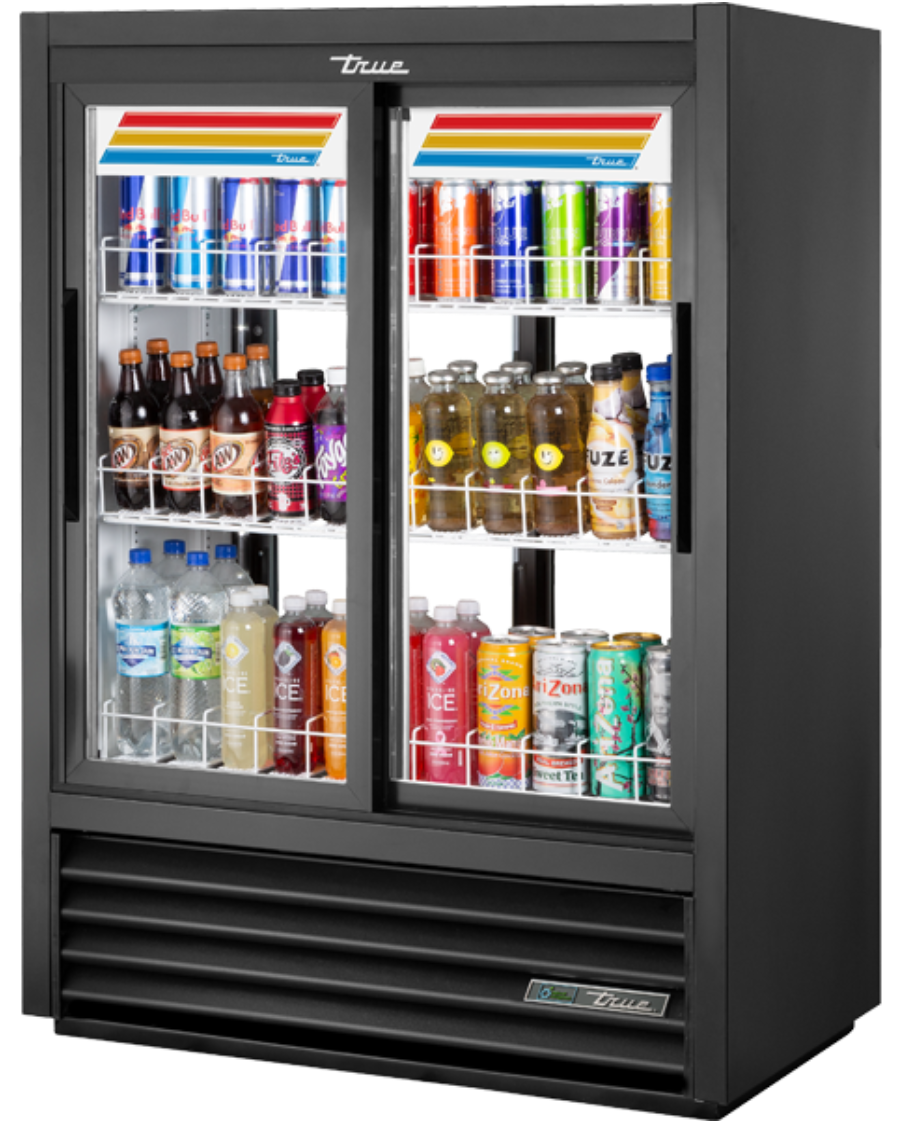

True GDM-33CPT-54-HC-LD 39 1/2" GDM Series Two Section Pass Thru Glass Door Merchandiser - (2) Sliding Doors, Black, 115v
True GDM-33CPT-54-HC-LD 39 1/2" GDM Series Two Section Pass Thru Glass Door Merchandiser - (2) Sliding Doors, Black, 115v
Free Shipping
Product Details
2 front and 2 back doors have double-pane, thermal-insulated glass that keeps cold air inside and provides cabinet visibility
Self-closing doors help keep cold air in
Each door has a 12-in. handle for access
3 heavy-duty, PVC-coated wire shelves are on 1⁄2-in. increments
4 chrome-plated shelf clips for each shelf
LED interior lights help highlight products
Door sign decal helps grab customer attention
Heavy-duty steel frame rail is black powder coated to protect against corrosion and is fitted with leg levelers to stabilize the cabinet
Whole cabinet has foamed-in-place, high-density polyurethane insulation that traps cold air
Durable white aluminum interior liner and stainless steel floor
Heavy-duty, black laminated vinyl exterior resists chipping and peeling
Clean-out drain is built into the cabinet floor
Refrigeration System
Temperature range: 33-38 degrees F
Self-contained capillary tube system uses environmentally friendly R134A refrigerant
Condensing unit is mounted on the bottom of the unit for maintenance
No-stoop lower shelf helps showcase products
Sealed, cast iron evaporator fan motor and larger fan blades provide low-velocity, high-volume airflow
Airflow design ensures quick pull-down temperatures, cold holding temperatures, and fast temperature recovery
Evaporator is coated in epoxy to resist corrosion
Condenser, compressor, and evaporator maintain even temperatures
Dimensions & Utilities
Shelves: 343⁄8 in. W x 177⁄8 in. D
Overall: 391⁄2 in. W x 257⁄8 in. D x 541⁄8 in. H
4.1 A, 1⁄3 HP
115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
From The Manufacturer
Refrigerated Merchandiser, pass-thru, two-section, (3) PVC coated adjustable wire shelves, (2 front/2 back) Low-E thermal glass sliding doors, LED interior lights, non-peel or chip black powder coated cold rolled steel exterior, white aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.0 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Quick Spec
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 15.8 |
| Depth (in) | 25.01 |
| Door Design | Sliding |
| Door Type | Glass |
| Height (in) | 54.13 |
| Hertz | 60 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 2 |
| Series | GDM Series |
| Special Features | LED Lighting, Pass Thru, Self Contained |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor Parts |
| Width (in) | 39.5 |
| Weight | 360.00 |
