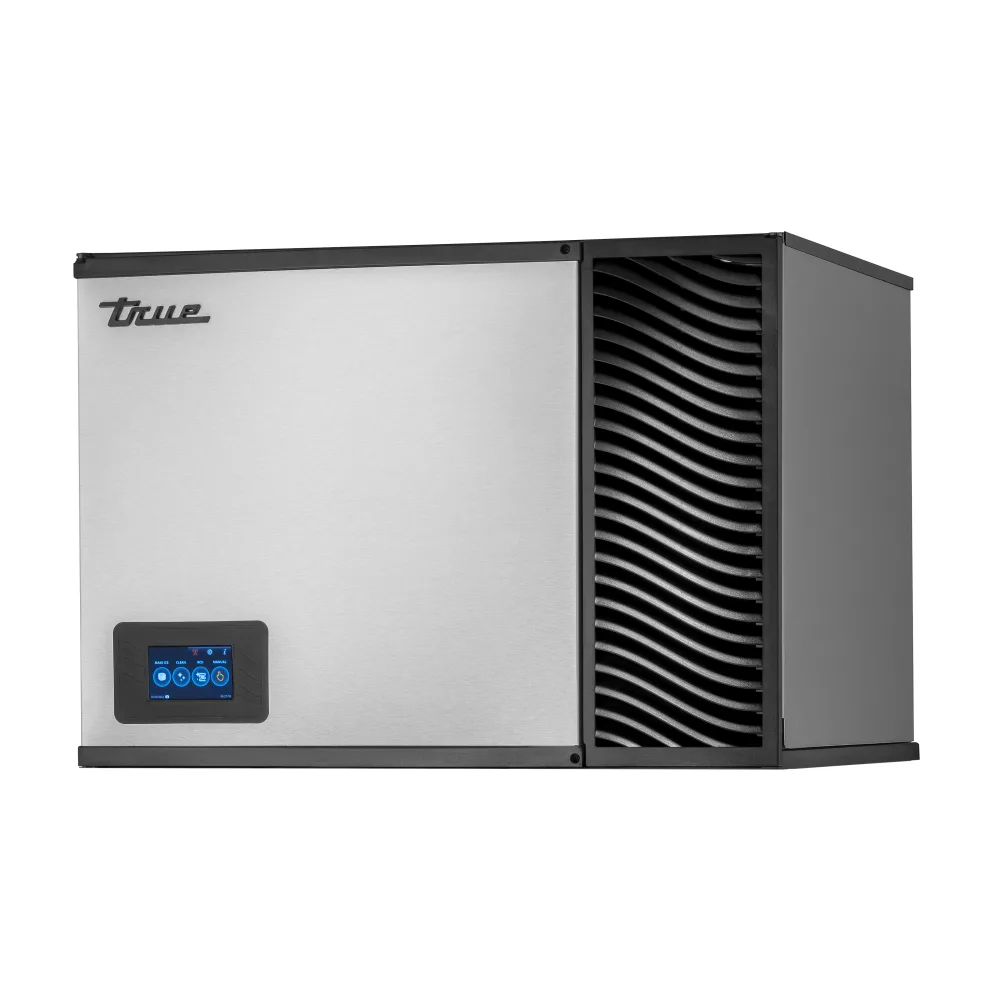

True TCIM-530-HA1-A 30" Half Cube Ice Machine Head - 560 lb/24 hr, Air Cooled, 115v/1ph
True TCIM-530-HA1-A 30" Half Cube Ice Machine Head - 560 lb/24 hr, Air Cooled, 115v/1ph
Free Shipping
Product Details
True Ice series
Head only
560-lb. ice production in 24 hours at 70 degrees ambient air/ 50 degrees incoming water
500-lb. ice production in 24 hours at 90 degrees ambient air/ 70 degrees incoming water
Half-cube ice size: 7/16 in. L 11/8 in. W x 7/8 in. H
Truetech aluminum exterior finish
TrueGuard antimicrobial components
Air-cooled condenser
Environmentally friendly R290 refrigeration
Easily removable air filter w/ RCU technology
Touchscreen Controls
4-in. front display
Diagnostics
Built-in alarms and push notifications
Programable ice production
1-touch cleaning
Time of flight ice sensor
Remote monitoring and shut off
Dimensions & Utilities
30 in. W x 24 in. D x 22 in. H
115 V/ 60 Hz/ 1 ph
Quick Spec
| Attribute | Specification |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 560 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 22 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts & Labor |
| Water Inlet (in) | 0.5 |
| Width (in) | 30 |
| Weight | 180.00 |
