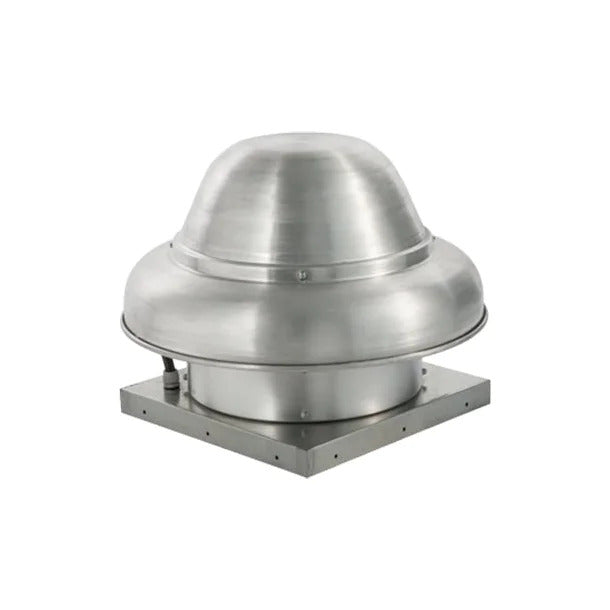

FloAire DR240H Centrifugal Downblast Roof Exhaust Fan 24 inch, 8,000 CFM, 3 Phase, 5HP, 208V Variable Speed Direct Drive

FloAire DR240H Centrifugal Downblast Roof Exhaust Fan 24 inch, 8,000 CFM, 3 Phase, 5HP, 208V Variable Speed Direct Drive

Regular price $2,115.31
Regular price Sale price $2,115.31
/ Each

Lead Time: Usually ships in 7–10 business days, directly from FloAire. Delivery estimates are not guaranteed and may change.

DR240H, Centrifugal Direct Drive Fans are designed to pull more air under higher static pressures. The efficient, balanced wheel and air inlet design contribute to maintaining low noise levels and extended motor life. These fans are especially suited for installation in hospitals, schools, motels and hotels, auditoriums, office buildings and light industrial areas.

  • Voltage: 208V
  • CFM: 8,000
  • Horse Power: 5 HP
  • Phase: 3 PH
  • Fan base size: 24"

Roof Mount Model ONLY

FEATURES
- Variable Frequency Drive - 5 HP Max, 200/240 V, Three Phase, 16.5 A Max., NEMA 1 Enclosure - Part Needs Programming
- Wiring Package for Commercial Fans. Manual Speed Control Variable Frequency Drive Included
- VFD factory mounted and wired in unit control vestibule
- VFD Mounting bracket
- Insulated Heat Baffle
- Spun aluminum housing for rust-free, weather resistant durability
- Standard bird screen
- Non overloading backward inclined wheels, blades and inlets fabricated from aluminum
- Wire conduit to provide a clear channel for electrical connections
- Safety disconnect

Quick Spec

Specification Details
Amps 15
Blade Diameter 24"
CFM 8,000
Country of Origin USA
Drive Type Direct
Harmonized System Code 841459
Hertz 60
Horsepower 5
Made in the USA Yes
Phase 3 Phase
Product Weight 215 lbs
RPM 8,000
Speed Variable Speed
Voltage 208
Warranty 2 Year Limited
