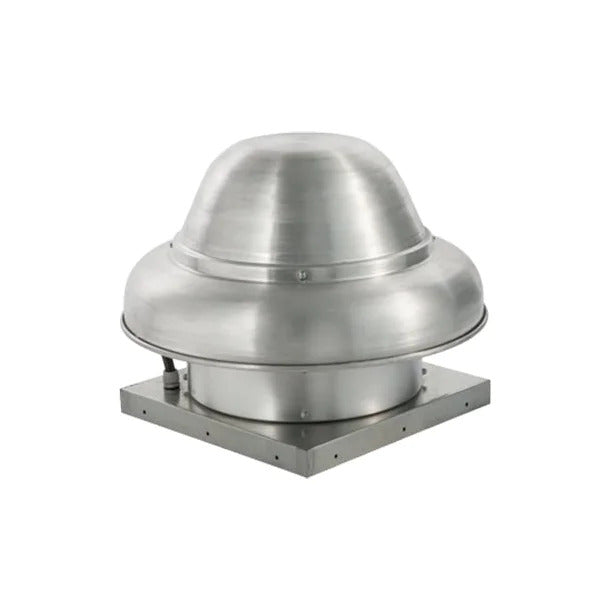

FloAire DR50H-ECM Centrifugal Downblast Roof Exhaust Fan 13.75 inch w/ Speed Control 1850 CFM 1PH 0.75HP 120/240V Direct Drive
FloAire DR50H-ECM Centrifugal Downblast Roof Exhaust Fan 13.75 inch w/ Speed Control 1850 CFM 1PH 0.75HP 120/240V Direct Drive
Lead Time: Usually ships in 7–10 business days, directly from FloAire. Delivery estimates are not guaranteed and may change.
Centrifugal Direct Drive Fans are designed to pull more air under higher static pressures. The efficient, balanced wheel and air inlet design contribute to maintaining low noise levels and extended motor life. These fans are especially suited for installation in hospitals, schools, motels and hotels, auditoriums, office buildings and light industrial areas.
- Voltage: 120/240V
- CFM: 1850
- Horse Power: 0.5 HP
- Phase: 1 PH
- Fan base size: 13.75"
All units up to 18" wheel and some 20 and 24" wheel can be wall mounted
FEATURES
Spun aluminum housing for rust-free, weather resistant durability
Standard bird screen
Non overloading backward inclined wheels, blades and inlets fabricated from aluminum
Wire conduit to provide a clear channel for electrical connections
Safety disconnect
Quick Spec
| Specification | Details |
|---|---|
| Amps | 6.3 |
| Blade Diameter | 13.75" |
| CFM (Airflow) | 1850 |
| Country of Origin | USA |
| Drive Type | Direct |
| Harmonized System Code | 841459 |
| Hertz | 60 |
| Horsepower | 0.5 |
| Made in the USA | Yes |
| Phase | 1 Phase |
| Product Weight | 50 lbs |
| RPM | 1213 |
| Speed | 1 Speed |
| Voltage | 120 / 240 |
| Warranty | 2 Year |
| Ships From | Pennsylvania, USA |
