FloAire DU200H-5HP208V3PH Exhaust Fan, 28" Fan Base, 20-3/4" wheel, Roof Mount, 4500 CFM, 1187 RPM, 3 Phs, 5HP, 208 V, VFD

The FloAire DU200H High-Speed Direct Drive Centrifugal Upblast Exhaust Fan delivers 4500 CFM of powerful airflow with a 5 HP, 208V, 3-phase ODP motor, making it ideal for commercial kitchens requiring strong, reliable grease and heat exhaust. With a 20-3/4" wheel, 28" x 28" roof-mount base, and premium E-Plus3 efficiency, this model provides heavy-duty performance for high-demand ventilation. The unit comes fully equipped with a factory-mounted VFD, manual speed control, grease cup, and insulated heat baffle for safe, efficient operation. If you need a high-capacity, adjustable-speed upblast fan ready for immediate installation, the DU200H is an excellent match.

• Voltage: 208V
• CFM: 4500
• Horse Power: 5 HP
• Phase: 3 PH
• Fan base size: 28"

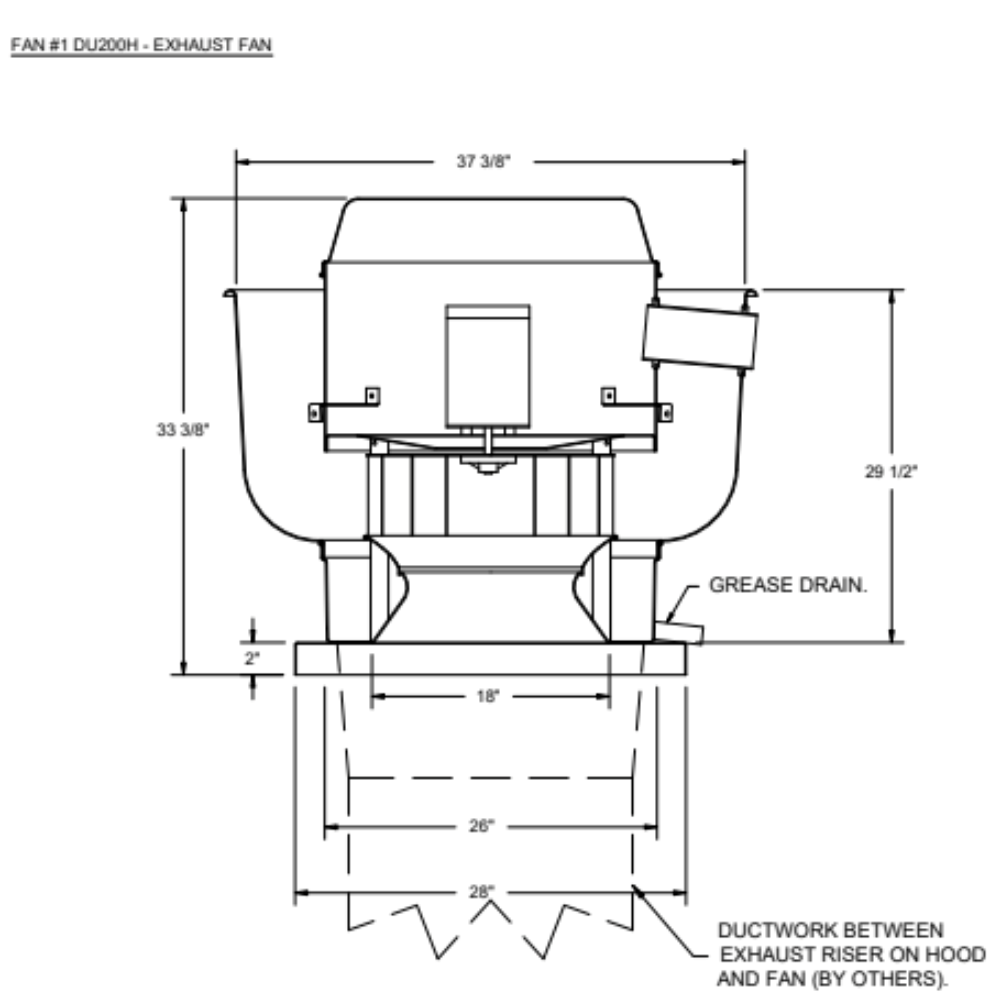

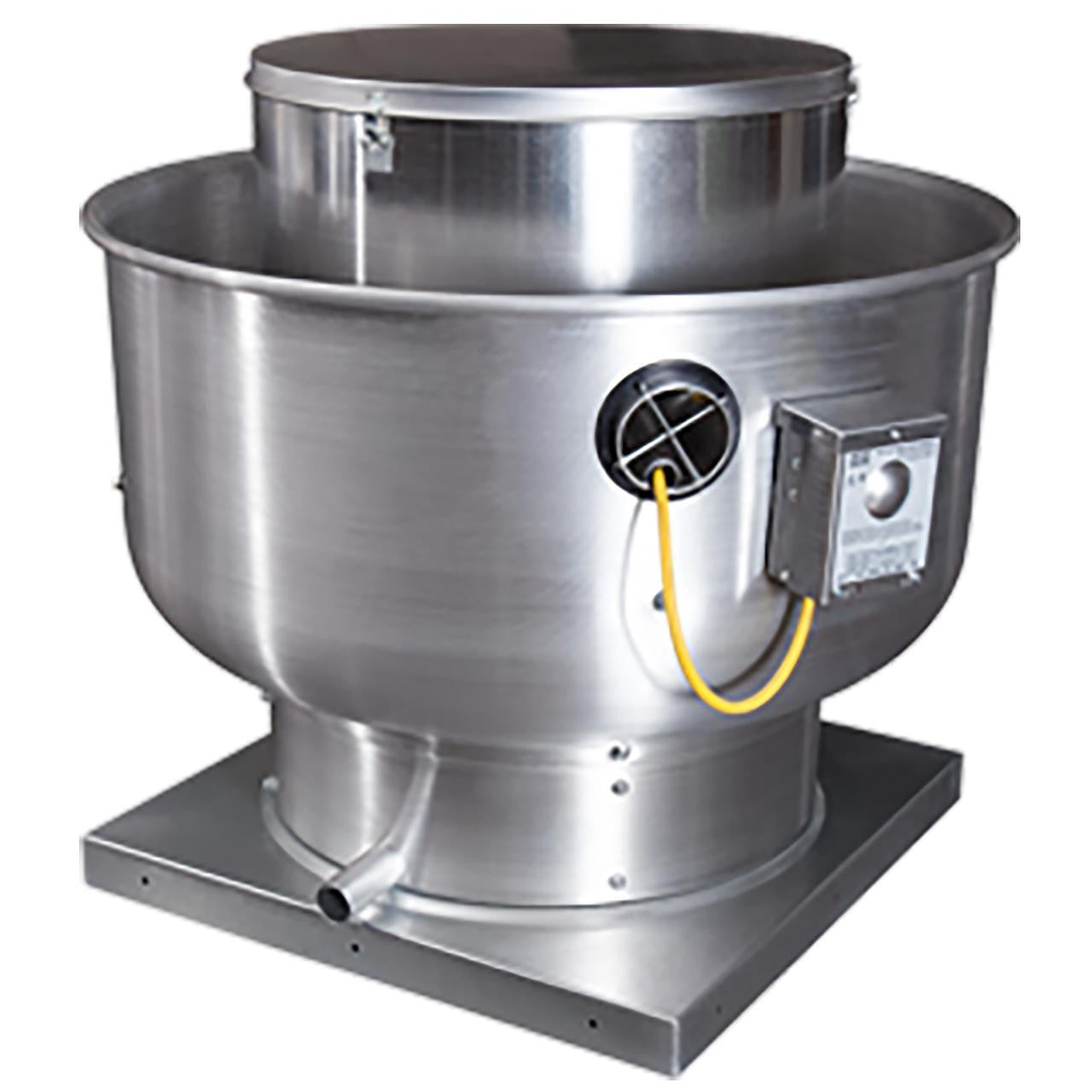

FloAire DU200H Upblast Exhaust Fan

Key Features

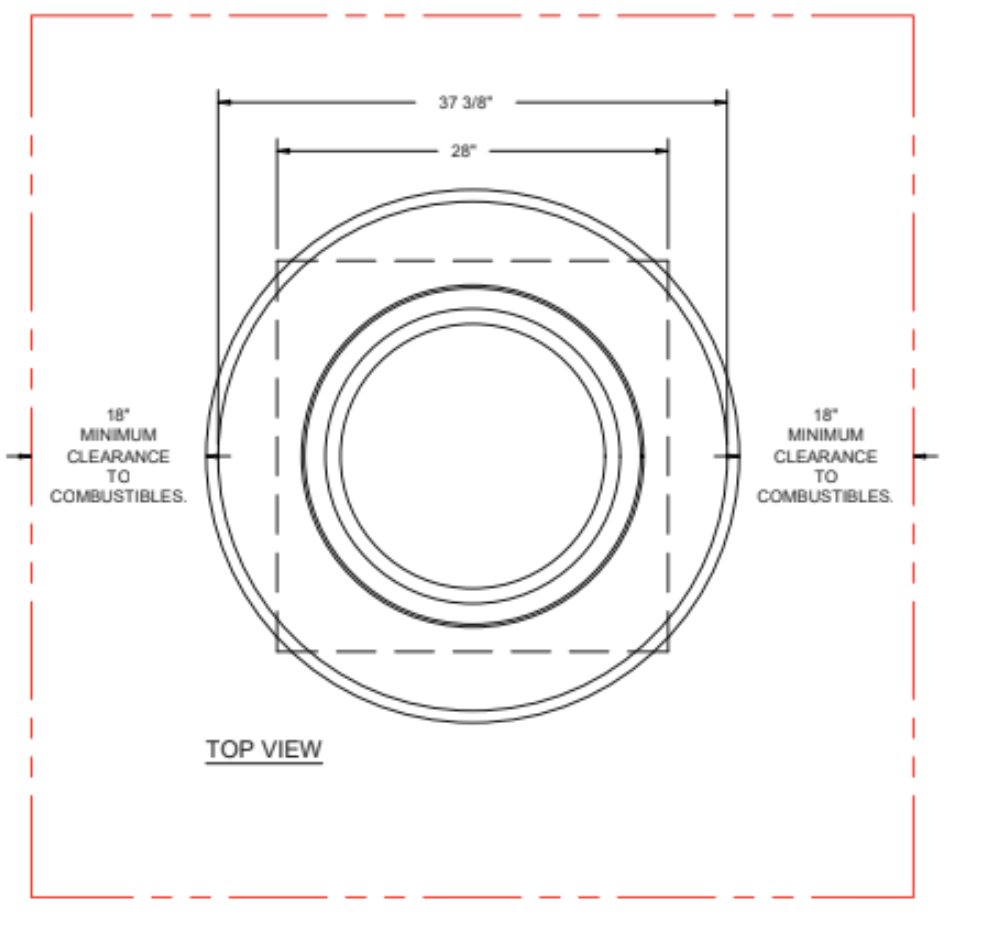

• Roof-mount design with 28" x 28" fan base

• Direct-drive centrifugal construction

• Built-in disconnect switch

• 20-3/4" fan wheel

Performance

• Airflow: 4500 CFM @ 0.750" w.c. ESP

• Fan Speed: 1187 RPM

Motor Specifications

• Power: 5 HP

• Phase/Voltage: 3-Phase, 208V

• Frequency: 60 Hz

• FLA: 15.0

• Type: ODP (Open Drip Proof)

• Efficiency: Premium E-Plus3

Included Components

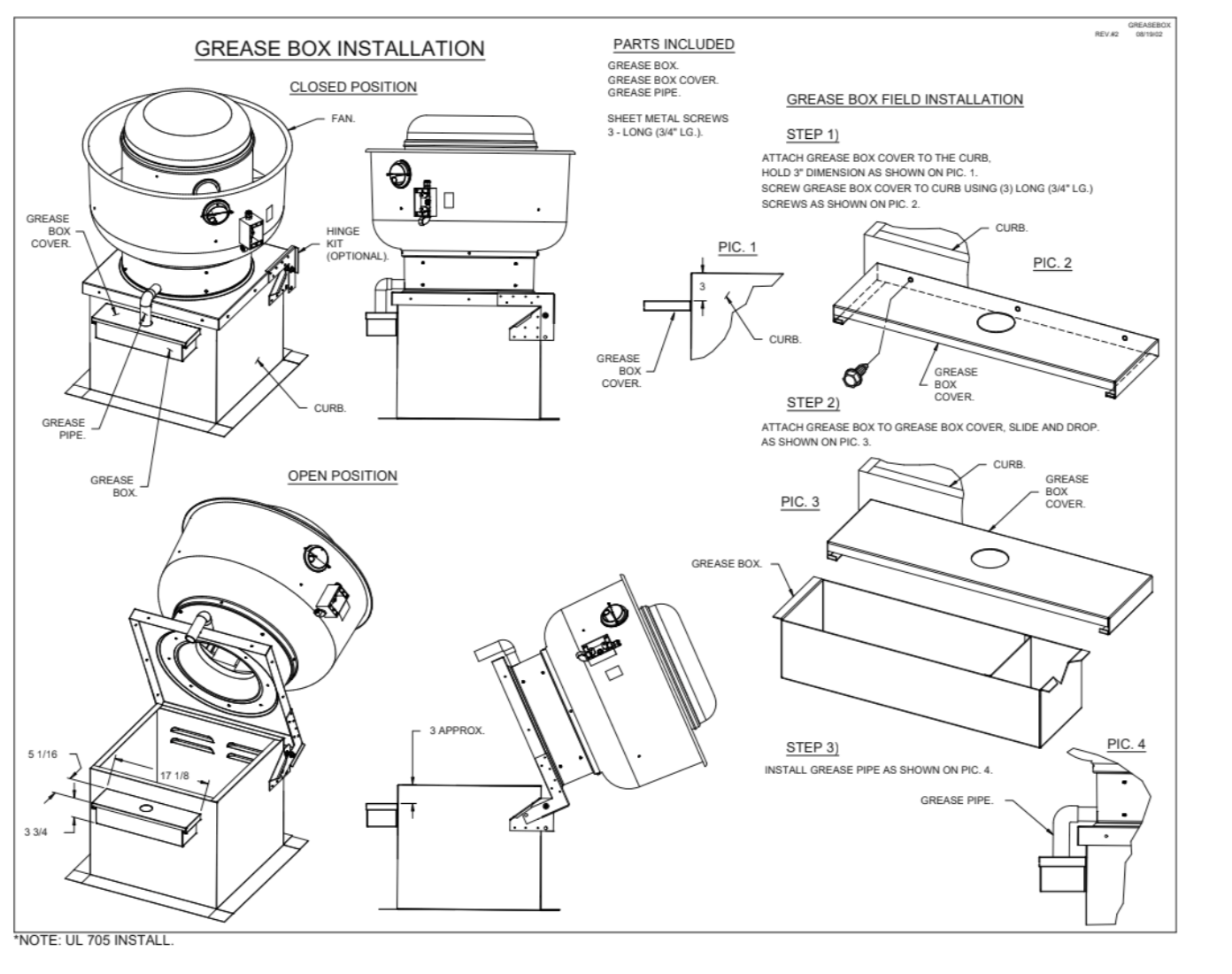

1. Grease Cup – Qty: 1

• Dimensions: 17-1/8" L x 5-1/16" W x 3-3/4" H

• Material: 20-gauge

• Includes down spout

2. Insulated Heat Baffle (Type 475FRK) – Qty: 1

• 1" insulation under motor and on top plate

• Cut to fit shaft wrapper, vibration isolators, and motor cooling opening

• Fully caulked to top plate

3. VAV (Variable-Air-Volume) Wiring Package – Qty: 1

• Includes manual speed control

• Includes Variable Frequency Drive (VFD)

4. VFD (Variable Frequency Drive) – Qty: 1

• Model: ESV402N02TXB

• Max Motor: 5 HP

• Voltage: 200/240V, Three Phase

• Max Amps: 16.5A

• Enclosure: NEMA 1

      Note: Part requires programming

5. Factory-Mounted VFD – Qty: 1

• Installed and wired inside the unit’s control vestibule

6. VFD Mounting Bracket – Qty: 1

• Designed for DU/DR 180 and 200 models
