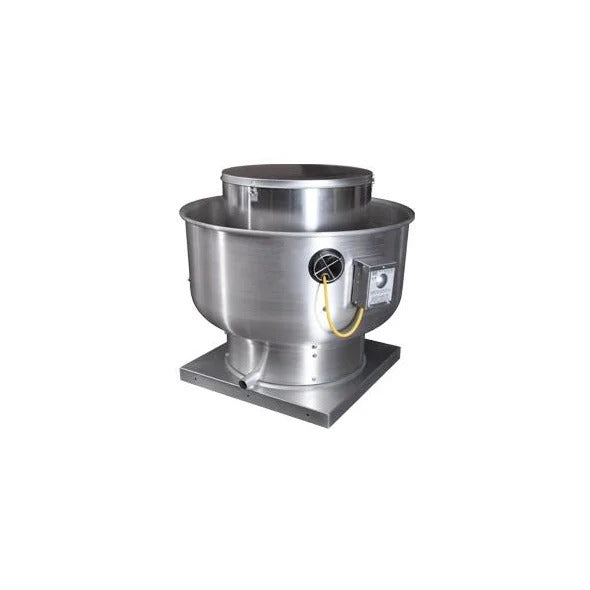

FloAire DU360H4605 Upblast Centrifugal Roof Ventilator 36 inch w/ VFD - 13,000 CFM, 3 Phase, 5HP, 240/480V Direct Drive

Centrifugal roof exhausters are engineered to discharge grease laden vapors, fumes and other contaminants vertically away from the building.

• Voltage: 240/480V
• CFM: 13,000
• Horse Power: 5 HP
• Phase: 3 PH
• Fan base size: 36"

Roof Mount Model ONLY

Included:

- VAV (Variable-Air-Volume) Wiring Package for Commercial Fans

-Manual Speed Control Variable Frequency Drive Include

- ESV402N04TXB - Variable Frequency Drive - 5 HP Max., 400/480 V, Three Phase, 9.4/8.2 A Max., NEMA 1 Enclosure

-PART NEEDS PROGRAMMING

- KDRAA3L2 - 480V 8.2A Line/Load reactor. Used with VFD

- VFD factory mounted and wired in unit control vestibule

- VFD Mounting bracket for DU/DR 300 and 360

- Insulated Heat Baffle for Exhaust Fans. Type 475FRK 1-inch-thick insulation installed on the top side of the top plate and under the motor of upblast and down blast fans. Cut to fit shaft wrapper and around vibration isolators and motor cooling hole

-Caulked down to top plate.

- Mount Load Reactor in Fan.

Features:

- Completely enclosed drive compartment protects motor from airborne contaminants

- Forced fresh air through the motor compartment cools motor and ensures long motor life

- Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)

- Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum

- Units up to 24" nominal wheel can be wall mounted

- Quick release latches allow for easy access to motor compartment. (Size 12 & larger)

- Standard emergency disconnect switch (Size 12 & larger)
