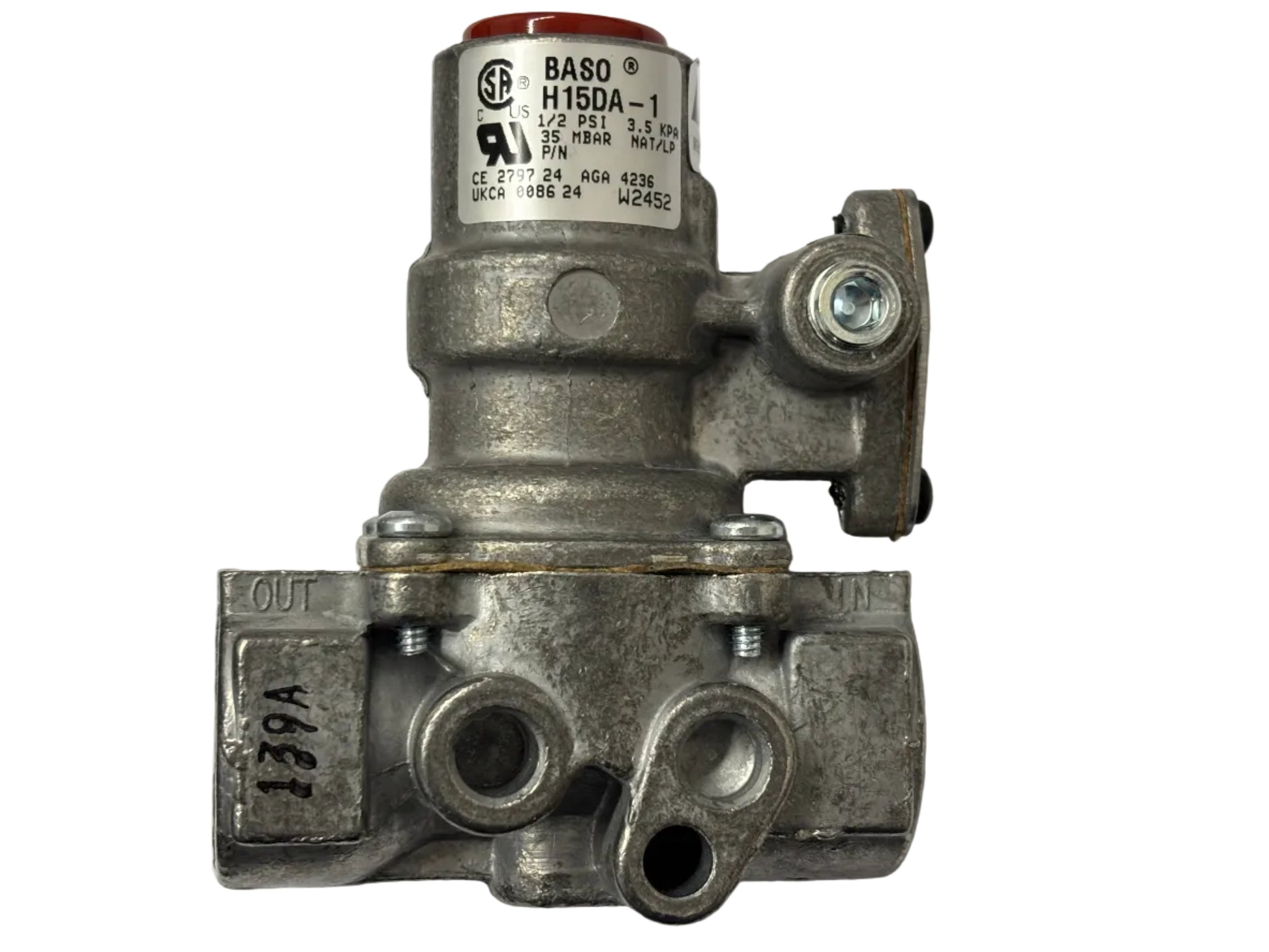

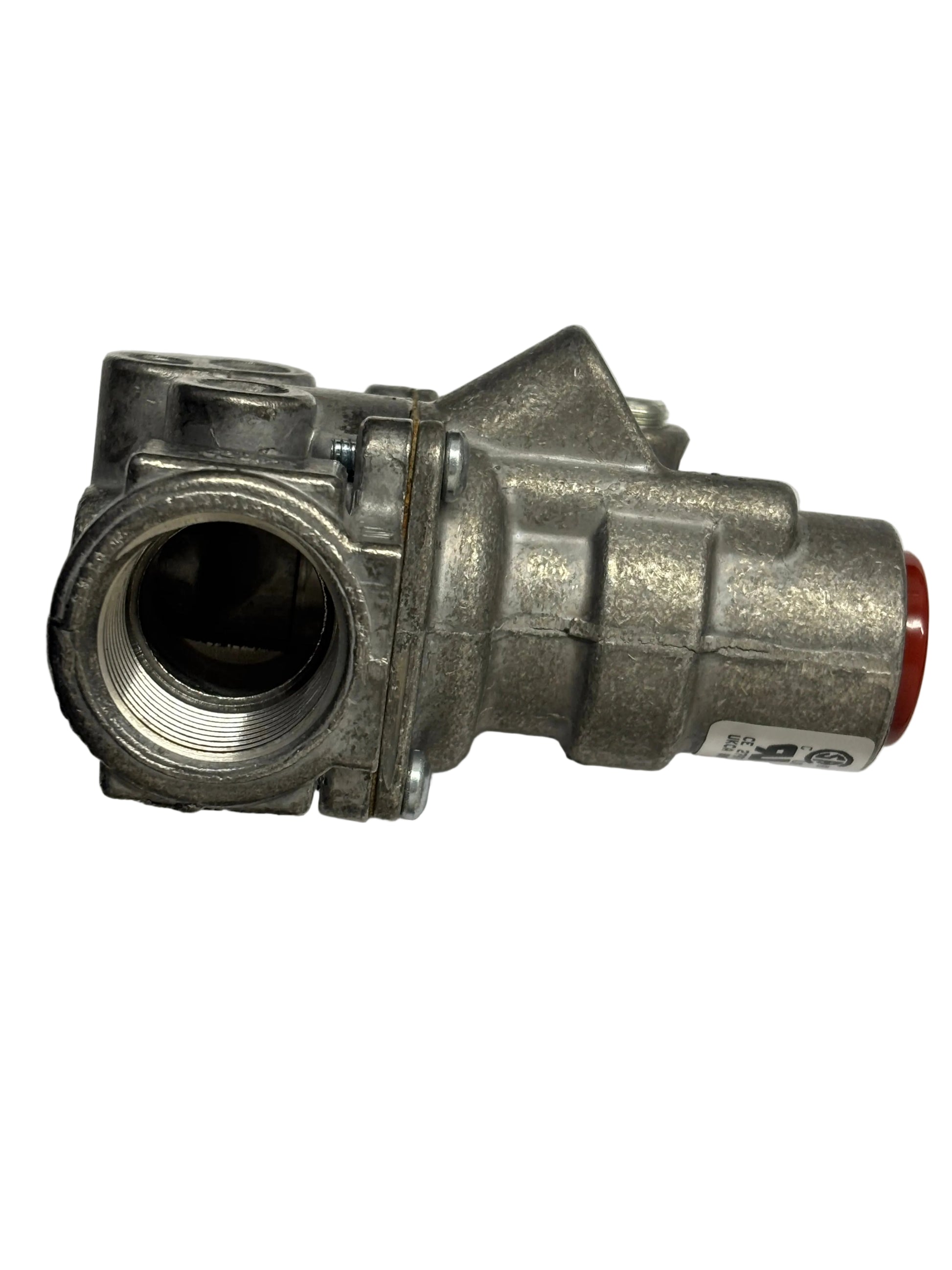

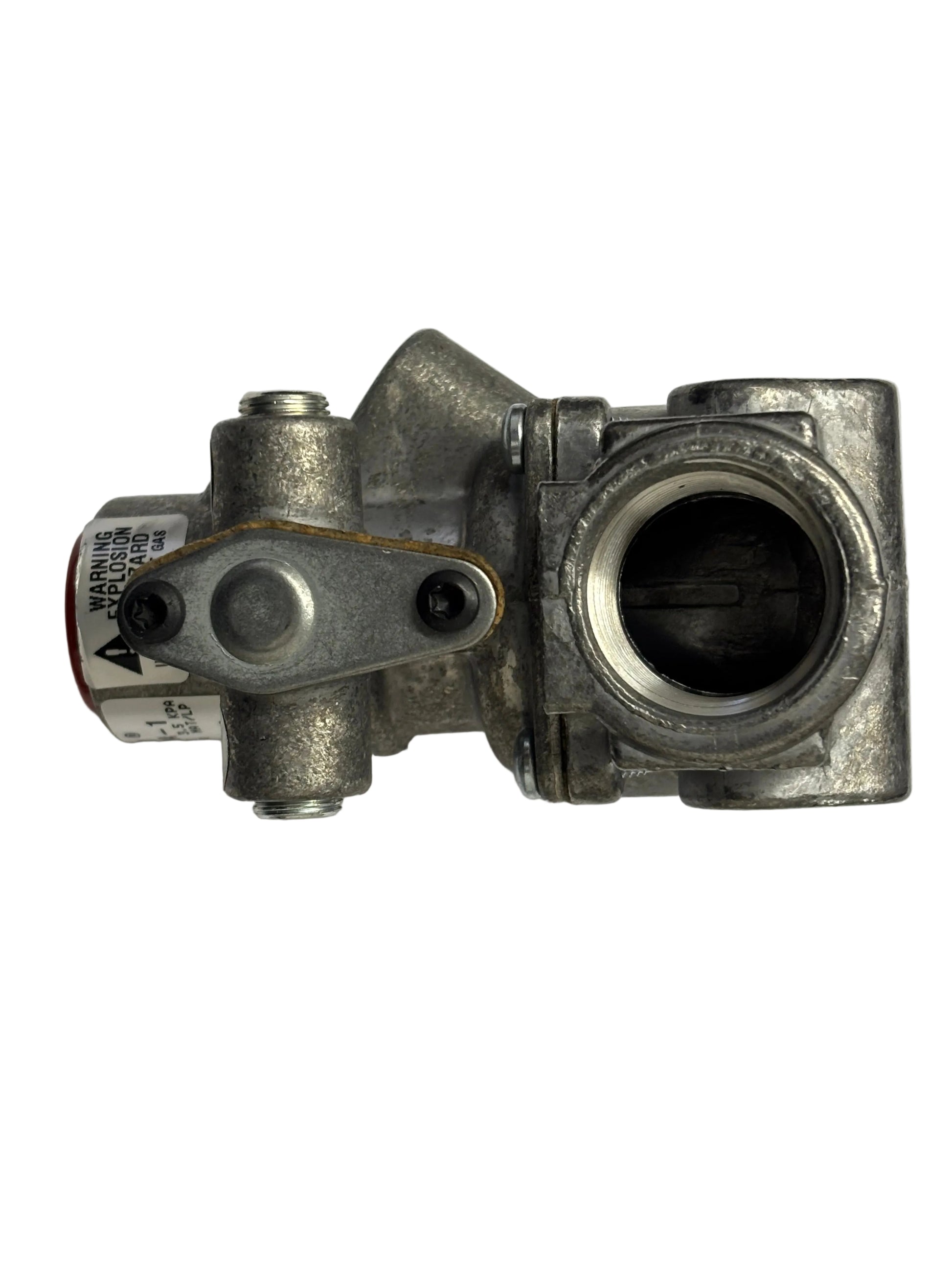

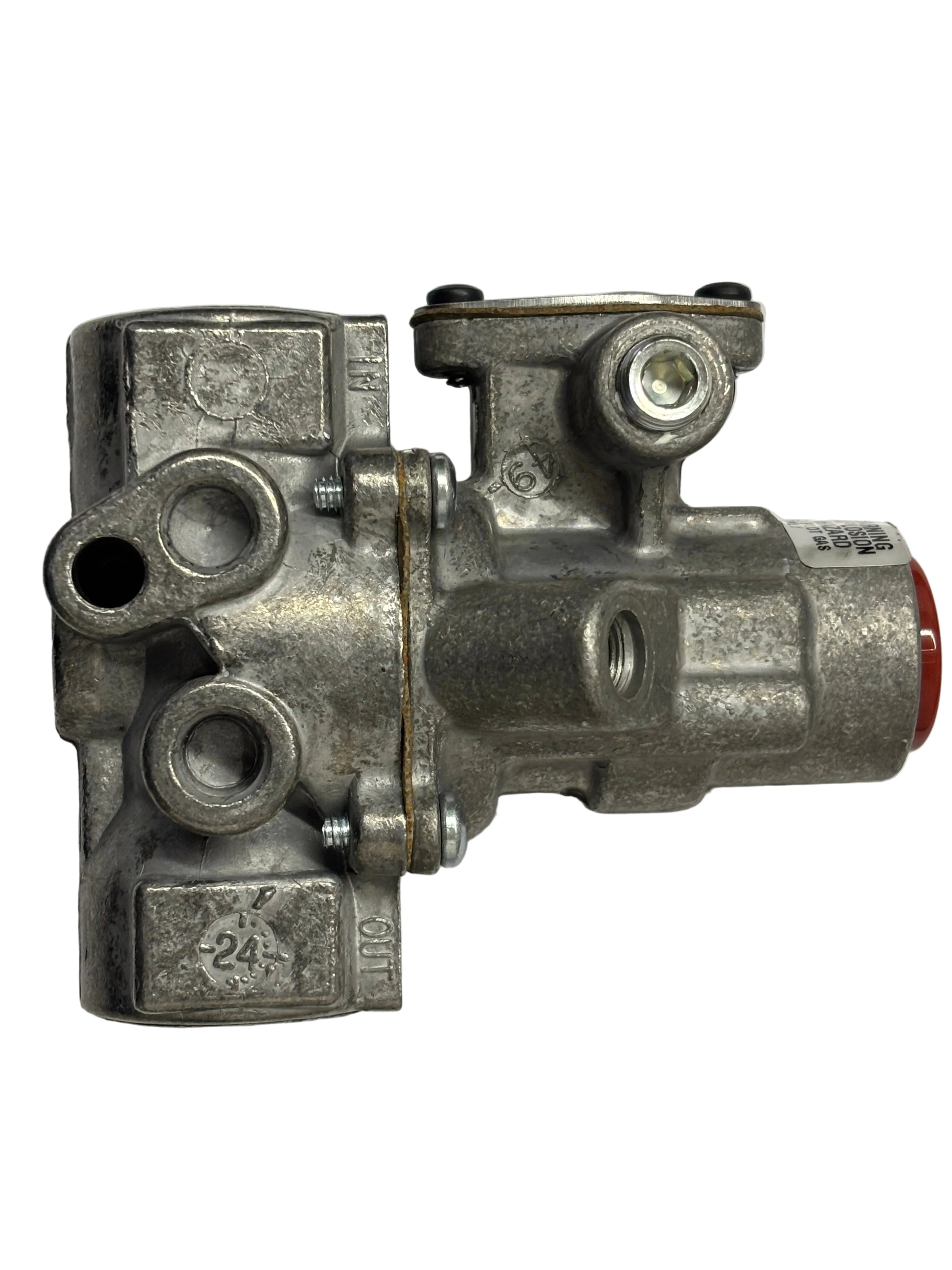

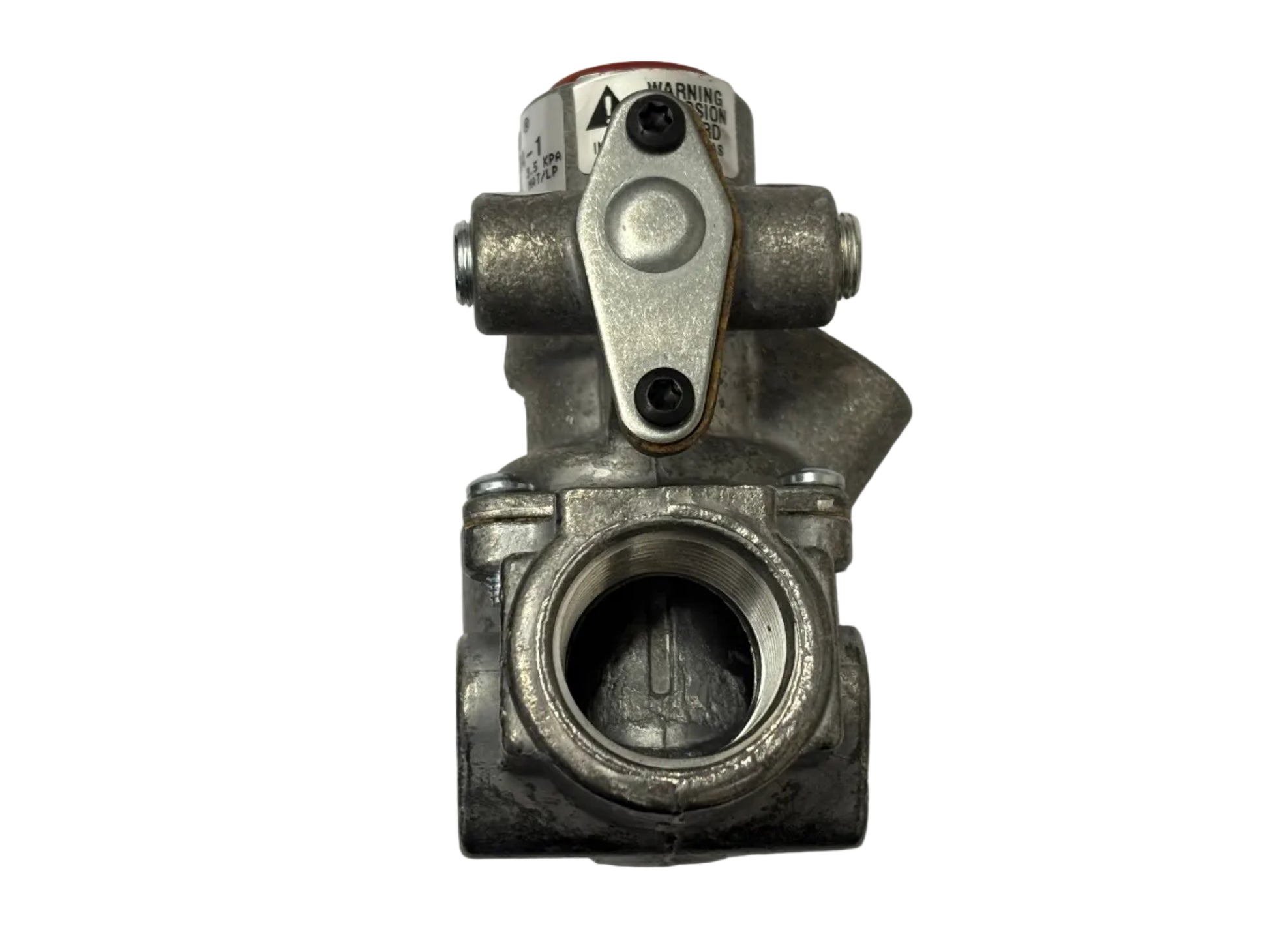

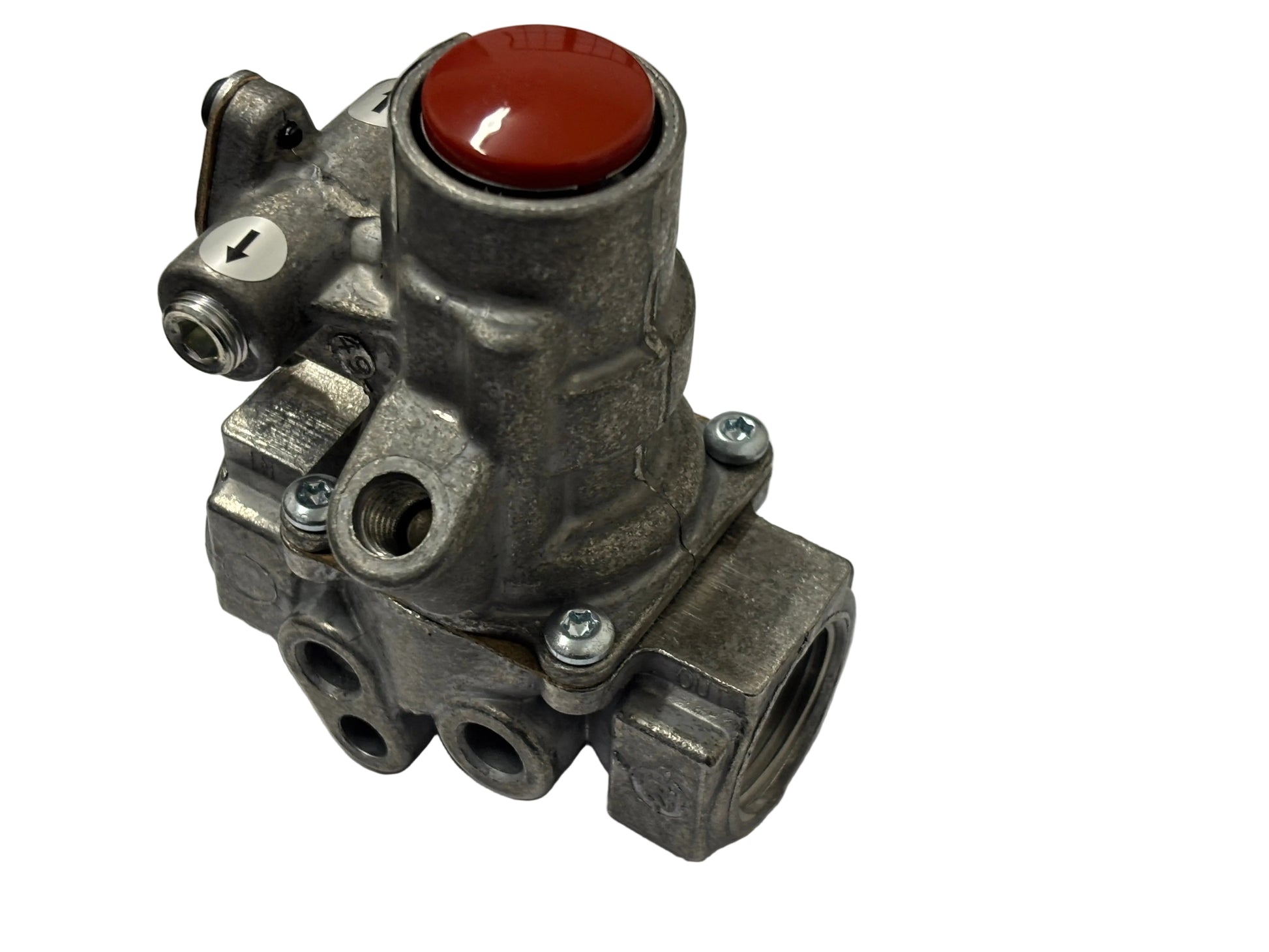

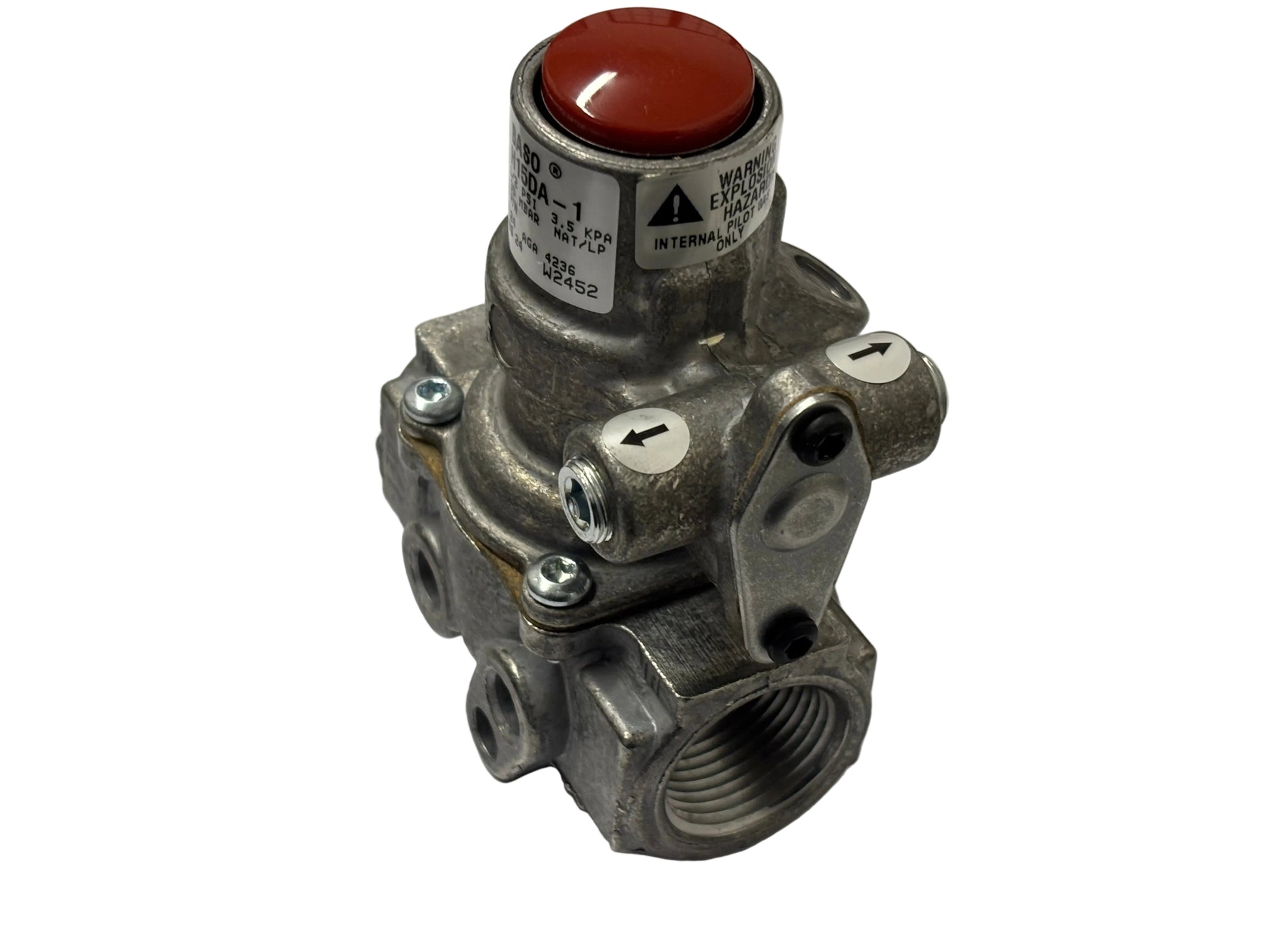

BASO Safety Valve H15DA-1

BASO Safety Valve

Valve only — Rated for up to 1/2 psi (14" water column) maximum pressure, featuring 3/4" inlet and outlet connections.

Compatible with the thermocouple listed below.
Copper tubing and pilot burner are not included and must be purchased separately.

Features:

• Suitable for natural gas or liquid propane

• 3/4" NPT gas inlet/outlet

• 1/4" NPT pilot outlet

• Thermocouple port located on the right side when facing the gas inlet

Application
The H15 Series pilot valves ensure safe ignition and complete shutoff of both pilot and main burner gas for a wide range of residential and commercial gas-fired equipment. Typical applications include room heaters, wall heaters, unit heaters, central heating systems, crop dryers, dishwashers, industrial ovens, and degreasing equipment.

Installation

IMPORTANT: Installation and servicing should be performed only by qualified personnel. These instructions are intended as a guide for trained professionals. Always follow the instructions provided here and those supplied with the appliance.

IMPORTANT: All gas installations must comply with applicable local, national, and regional codes and regulations.

CAUTION – Electrical Shock Hazard: Disconnect power before making any electrical connections to avoid shock. (If the application does not require electrical power, this caution does not apply.)

WARNING – Explosion or Fire Hazard: Turn off the gas supply at the main manual shutoff valve before installing or servicing the H15 valve. Failure to do so may allow gas to escape during installation or service, which can lead to explosion, fire, severe injury, or death.
