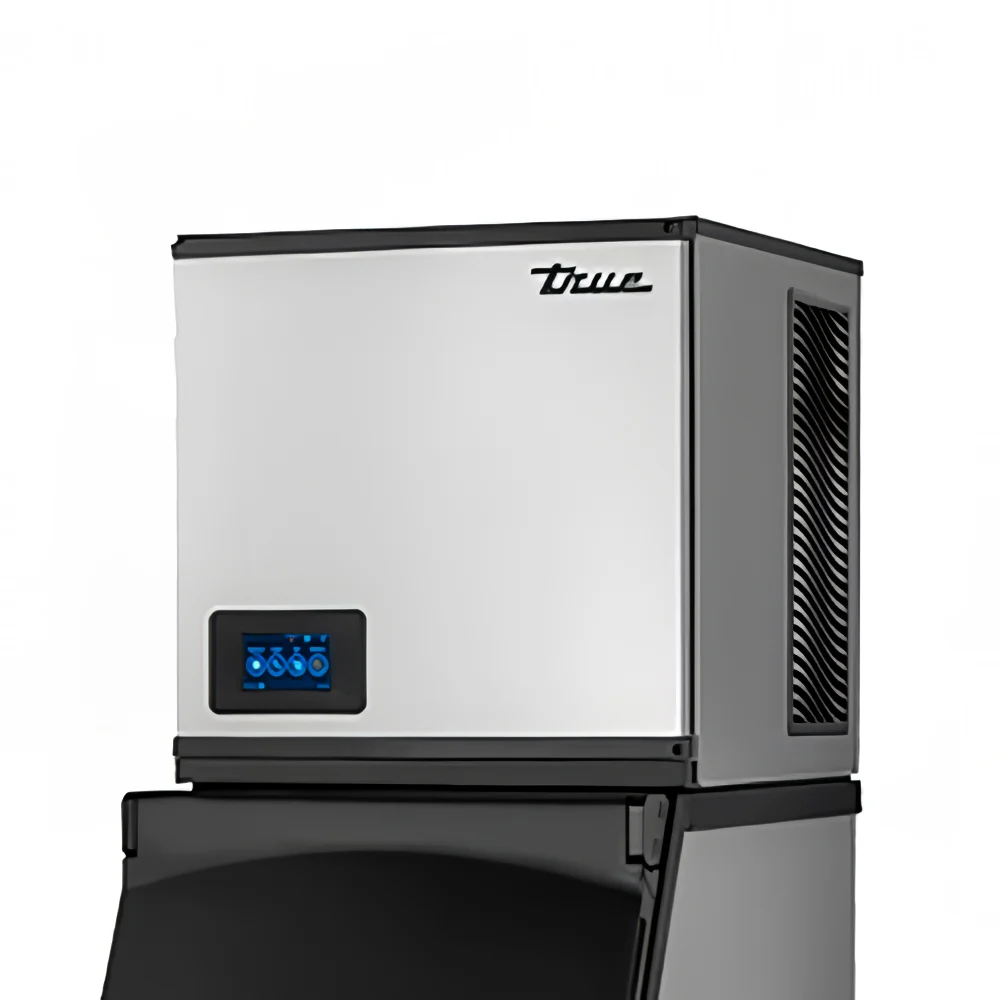

True TCIM-422-HA1-A 22" Half Cube Ice Machine Head - 443 lb/24 hr, Air Cooled, 115v/1ph
True TCIM-422-HA1-A 22" Half Cube Ice Machine Head - 443 lb/24 hr, Air Cooled, 115v/1ph
Free Shipping
Product Details
443-lb. production/24 hr
Truetech aluminum exterior finish
TrueGuard antimicrobial embedded in every plastic piece
Simple-to-remove food zone pieces
Removable air filter with RCU technology
Head only (bin sold separately)
Touchscreen Details
43/10-in. front display
Simple touch operation
1-touch cleaning
Intuitive diagnostic system
Alarms and push notifications
Programmable ice production rate
Time-of-flight ice sensors
Refrigeration System
Uses environmentally safe R290 hydrocarbon refrigerant
Sealed, fully insulated evaporator
High- and low-pressure transducers
Mirco-channel condenser
Ultra-quiet fan operation
Wide operating range between 35 and 110 degrees F
Water pressure range: 20-100 PSI
Dimensions & Utilities
22 in. W x 24 in. D x 22 in. H
104-127 V/60 Hz/1 ph
Quick Spec
| Attribute | Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 443 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 22 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts & Labor |
| Water Inlet (in) | 0.5 |
| Width (in) | 22 |
| Weight (lbs) | 165.00 |
| Feature | Description |
|---|---|
| Hardwired | Product does not come with a plug and must be hardwired to operate. |
| Natural Refrigerant | Product made with Hydrocarbon Refrigerants. |
| Half-Cube Ice | This unit produces half-cube ice, excellent for soft drinks, blended drinks, ice dispensing, and bagging. |
| Air-Cooled Compressor | Also called self-contained, this compressor type uses air for cooling. |
