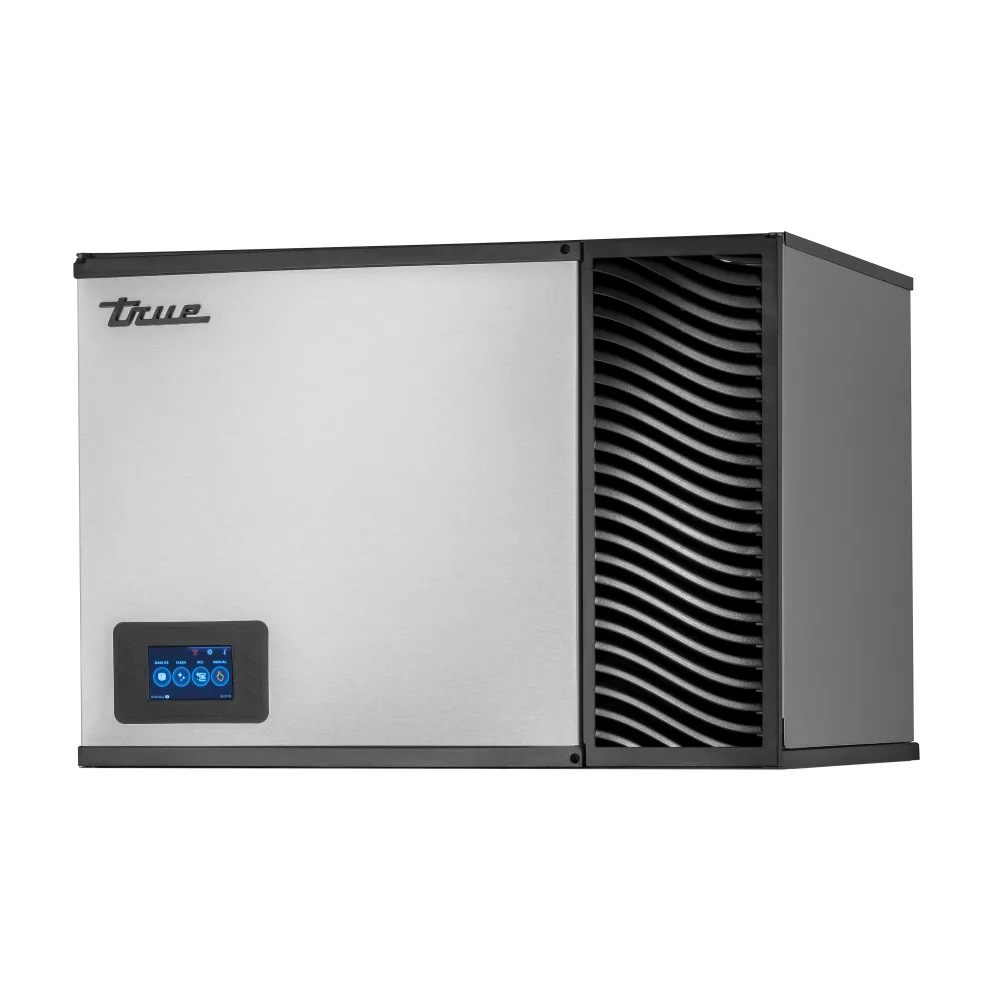

True TCIM-430-HA1-A 30" Half Cube Ice Machine Head - 447 lb/24 hr, Air Cooled, 115v/1ph
True TCIM-430-HA1-A 30" Half Cube Ice Machine Head - 447 lb/24 hr, Air Cooled, 115v/1ph
Free Shipping
Product Details
447-lb. production per day
Aluminum exterior finish
TrueGuard antimicrobial embedded plastic pieces
Food zone pieces are removable
Removable air filter
RCU technology
Head only (bin sold separately)
Touchscreen Details
43/10-in. display
Simple touch action and 1-touch cleaning
Instinctive diagnostic system
Alarms and visual push notifications
Ice production rate is programmable
Time-of-flight ice sensors remove need for bin thermostats
Refrigeration System
R290 hydrocarbon refrigerant
Evaporator is sealed and insulated
High- and low-pressure transducers track inputs and outputs
Compact condenser
Ultra-silent fan operation
Wide operating range between 35 and 110 degrees F
Water pressure range: 20-100 PSI
Dimensions & Utilities
301/5 in. W x 247/10 in. D x 221/5 in. H
104-127 V/60 Hz/1 ph
Quick Spec
| Attribute | Specification |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 447 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 22 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts & Labor |
| Water Inlet (in) | 0.5 |
| Width (in) | 30 |
| Weight | 180.00 |
| Feature | Description |
|---|---|
| Hardwired | Product does not come with a plug and must be hardwired to operate. |
| Natural Refrigerant | Product made with Hydrocarbon Refrigerants. |
| Half-Cube Ice | This unit produces half-cube ice, excellent for soft drinks, blended drinks, ice dispensing, and bagging. |
| Air-Cooled Compressor | Also called self-contained, this compressor type uses air for cooling. |
