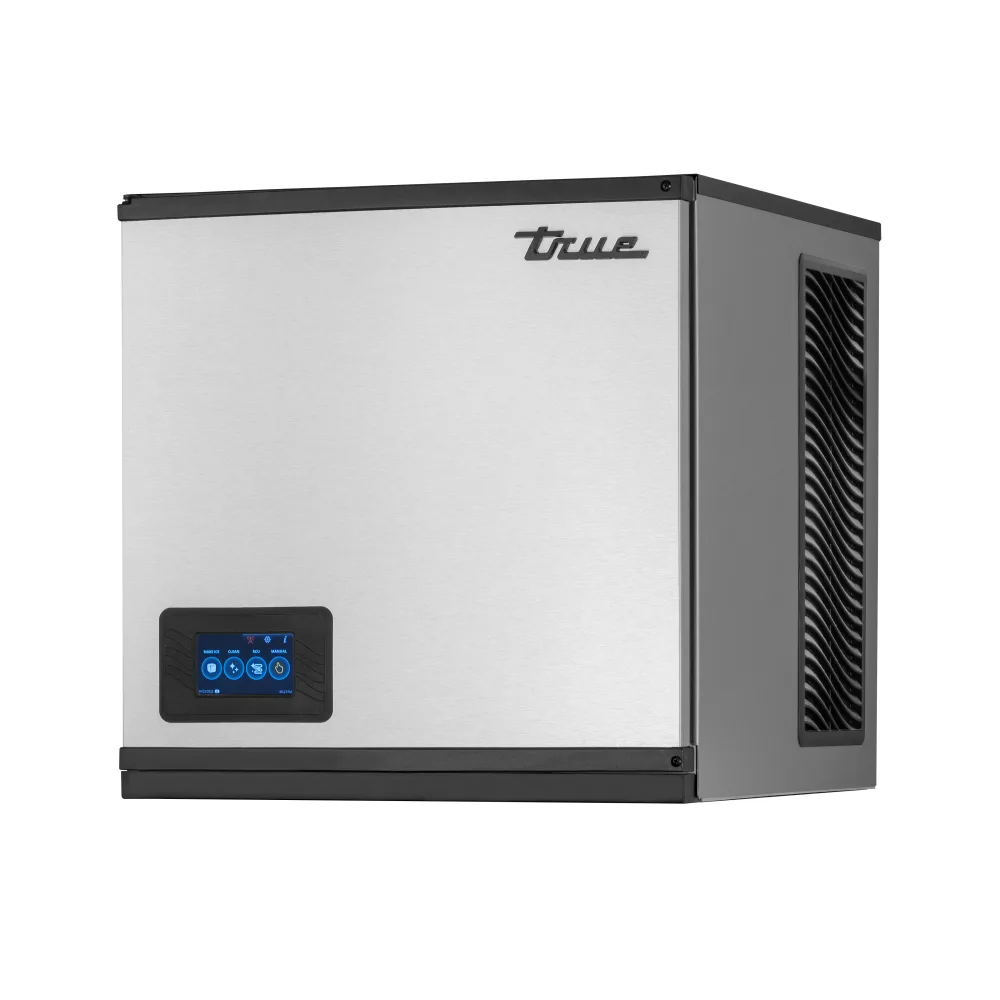

True TCIM-522-LA1-A~T-3 25" Large Cube Ice Machine Head - 550 lb/24 hr, Air Cooled, 115v
True TCIM-522-LA1-A~T-3 25" Large Cube Ice Machine Head - 550 lb/24 hr, Air Cooled, 115v
Free Shipping
Product Details
True Ice series
TrueTech aluminum construction
Plastic interior
Produces 560 lbs. of large ice per 24 hours
Bin purchased separately
Eco-friendly R290 refrigerant
Air cooled
Micro-channel condenser
High/low pressure transducers
Fully-insulated evaporator
Quiet fan operation
Removable air filter
Ambient temperature range: 35-110 degrees F
Water temperature range: 35-100 degrees F
7,600-BTU heat transfer capacity
Digital Controls
43/10-in. front display
Simple touch operation
Programmable ice production
Advanced diagnostics
Time-of-Flight ice sensor
Built-in alarms and push notifications
Remote monitoring and shut off
Dimensions & Utilities
243/5 in. W x 221/4 in. D x 223/16 in. H
15 A
115 V/60 Hz/1 ph
Quick Spec
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 550 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.23 |
| Height (in) | 22.18 |
| Hertz | 60 |
| Ice Type | Extra-large Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | One-touch Cleaning, Removable Air Filter, TrueGuard Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
| Water Inlet (in) | 0.5 |
| Width (in) | 24.6 |
| Weight | 180.00 |
| Feature | Description |
|---|---|
| Hardwired | Product does not come with a plug and must be hardwired to operate. |
| Natural Refrigerant | Product made with Hydrocarbon Refrigerants. |
| Full-Cube Ice | This unit produces full-cube ice, ideal for soft drinks, bagging, bulk cooling, and filling coolers. |
| Air-Cooled Compressor | Also called self-contained, this compressor type uses air for cooling. |
| Removable Air Filter | This unit has a removable air filter for easy maintenance. |
| NEMA 5-15P | This product comes with a NEMA 5-15P plug. |
