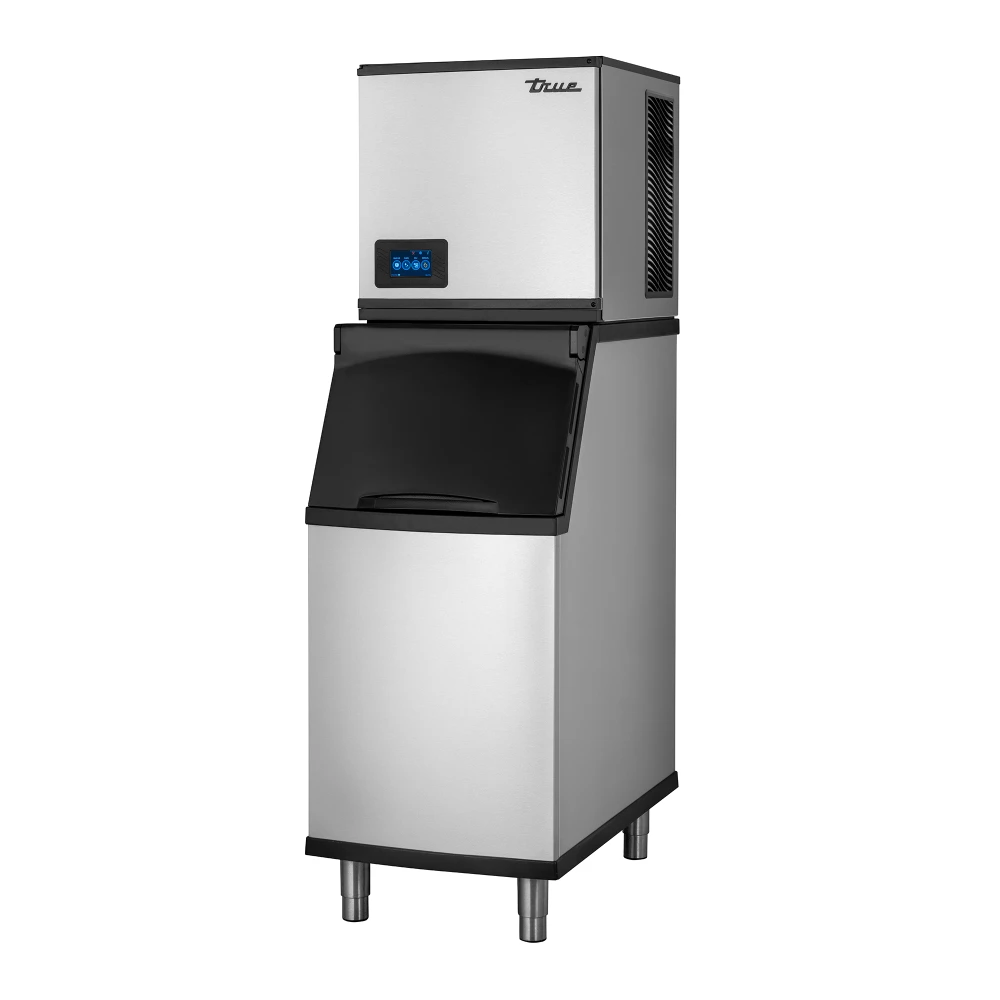

True TCIM-522-LA1-A~T-3/TIB-422-A 550 lb Large Cube Ice Machine w/ Bin - 320 lb Storage, Air Cooled, 115v
True TCIM-522-LA1-A~T-3/TIB-422-A 550 lb Large Cube Ice Machine w/ Bin - 320 lb Storage, Air Cooled, 115v
Free Shipping
Ice Maker
From the True Ice series
TrueTech aluminum exterior
Plastic interior
560-lb. daily ice production
Large cube-style ice
R290 hydrocarbon refrigerant
Air-cooled condenser
High/low pressure transducers
Fully-insulated evaporator
Removable air filter
Ultra-quiet fan operation
Ambient temperature range: 35-110 degrees F
Water temperature range: 35-100 degrees F
7,600-BTU heat transfer capacity
Ice Bin
320-lb. storage capacity
TruTech aluminum exterior
Heavy-duty plastic lid and frame
Hinge design
High-density polyurethane foam insulation
Plastic interior with antimicrobial liner
Removable ice baffle
Includes Magnascoop
3-in. adjustable legs
Digital Controls
43/10-in. display with touch operation
Programmable ice production
Built-in alarms
Push notifications
Time-of-Flight™ ice sensor
Remote monitoring with back-end data access
Remote shut off
Dimensions & Utilities
Ice maker: 243/5 in. W x 221/4 in. D x 223/16 in. H
Bin: 222/5 in. W x 351/8 in. D x 50 in. H
15 A
115 V/60 Hz/1 ph
Quick Spec
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 550 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 320 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 72.18 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | Alert System; Antimicrobial; Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
| Water Inlet (in) | 0.5 |
| Width (in) | 24.6 |
| Weight | 304 |
| Feature | Description |
|---|---|
| Natural Refrigerant | Product made with Hydrocarbon Refrigerants. |
| Full-Cube Ice | This unit produces full-cube ice, ideal for soft drinks, bagging, bulk cooling, and filling coolers. |
| Air-Cooled Compressor | Also called self-contained, this compressor type uses air for cooling. |
| Removable Air Filter | This unit has a removable air filter for easy maintenance. |
| Antimicrobial Protection | This item is fabricated with materials and/or finishes that inhibit the growth of microorganisms such as bacteria, fungi, viruses, and parasites. |
| NEMA 5-15P | This product comes with a NEMA 5-15P plug. |
