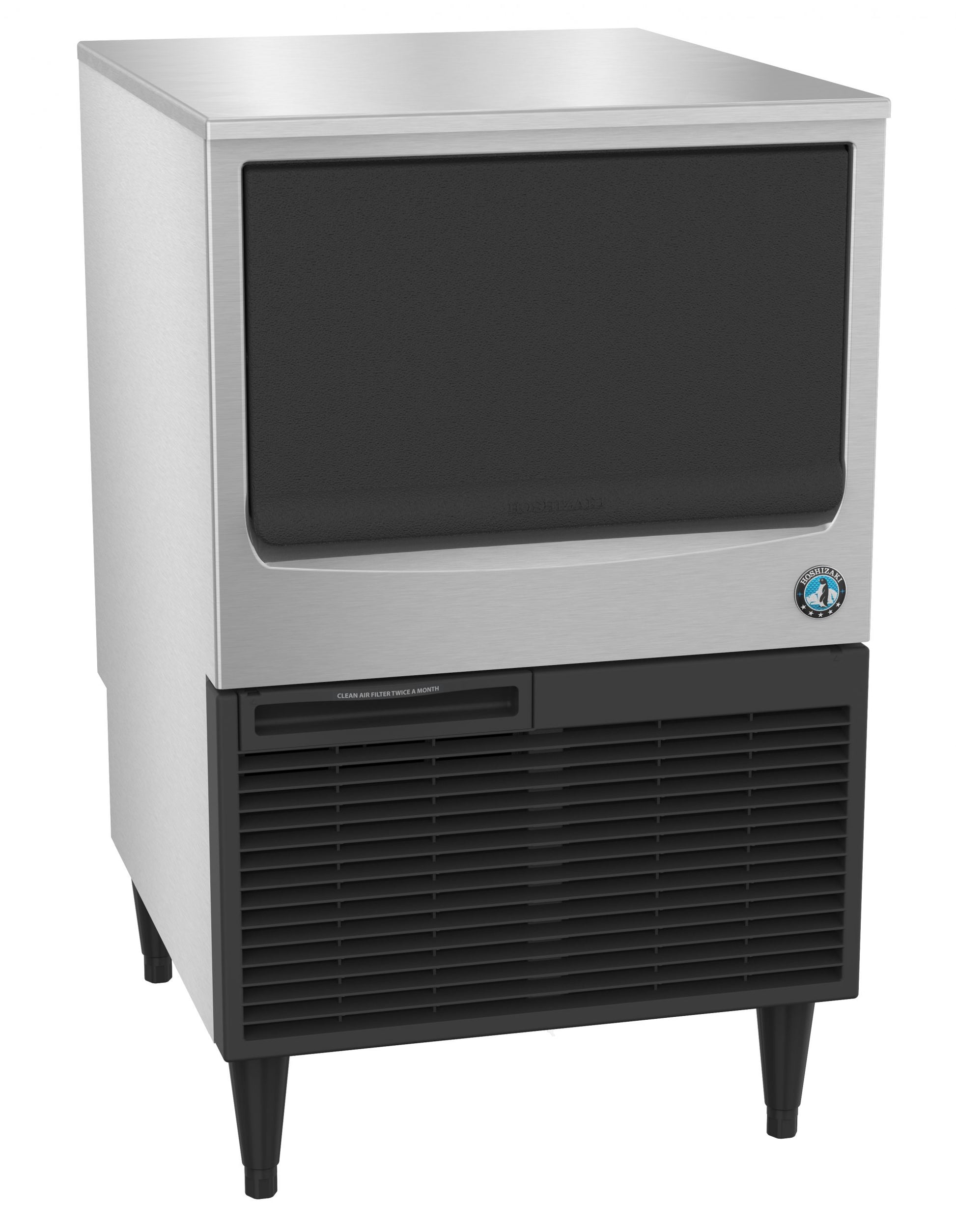

Hoshizaki KM-161BAJ Air Cooled Undercounter Ice Maker 23 3/4"W Crescent Cube - 162 lbs/day, ADA
Hoshizaki KM-161BAJ Air Cooled Undercounter Ice Maker 23 3/4"W Crescent Cube - 162 lbs/day, ADA
Regular price
$3,332.29
Regular price
Sale price
$3,332.29
Unit price
per
Free Shipping
Lead Time: Usually ships in 2~5 days
Undercounter Ice Maker Hoshizaki KM-161BAJ 23-3/4″ W x 28″ D x 39″ H Ice Maker With Bin, Cube-Style, 23-3/4"W, air-cooled, self-contained condenser, production capacity up to 163 lb/24 hours at 70°/50° (123 lb AHRI certified at 90°/70°), 78 lb. built-in ice storage capacity, crescent style cube, front opening bin, stainless steel exterior, 6" painted legs, 115v/60/1-ph, 7.1 amps, NSF, UL, cETLus, ADA Compliant
Quick Spec
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 163 |
| Bin Capacity (lb) | 78 |
| Compressor Type | Air Cooled |
| Depth (in) | 28 |
| Design | ADA Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | KM Series |
| Special Features | Alert System, Antimicrobial, Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 23.75 |
| Weight | 161.00 |
| Feature | Description |
|---|---|
| Cord Attached | This product includes a cord and plug. |
| Crescent Ice | This unit produces crescent ice, great for soft drinks, bar use, bagging, and ice dispensing. |
| Air-Cooled Compressor | Also called self-contained, this compressor type uses air for cooling. |
| Removable Air Filter | This unit has a removable air filter for easy maintenance. |
| Antimicrobial Protection | This item is fabricated with materials and/or finishes that inhibit the growth of microorganisms such as bacteria, fungi, viruses, and parasites. |
| Made in USA | This item is made in the United States of America. |
| NEMA 5-15P | This product comes with a NEMA 5-15P plug. |
